Stackable Pallet Cage Foldable Wire Cage Steel Pallet Container Wire Mesh Pallet Cage for Warehouse

Basic Info

Model NO.	YFZ-L1
Warranty	1 Year
Type	Metal Storage Cage
Size	851512526 mm
Load Capacity	1000kg
Folded	Folded
Mesh Spacing	50*50 mm
Wire Diameter	3 mm
Feet Height	100mm
Scale	Heavy Duty
Wire diameter	6.2
Welding	Full Welding
Company Type	China Professional Manufacturer
Customized Order	OEM, ODM
Material	Steel Q235
Finish	Zinc/Powder Coating/Hot-DIP Galvanized
Sample	Offer
Certificate	ISO9001/TUV/ BV/ SGS
Color	Yellow, Silvery or Customized
Stackability	4 High
Load in 40gp/Hq	230 Sets
Product Shelf Life	up to 3 or 5 Years
Application	Industrial, Warehouse, Logistics etc
Available Accessories	Top Lid, Divider, Runner Bar, Forklift Guide and C
Transport Package	Plastic Banding+Stretch Film Wrapped, Easy Loading
Specification	772467400 mm
Trademark	eastfound
Origin	Dalian, China
HS Code	732690
Production Capacity	2000 Sets/ Week

Product Description

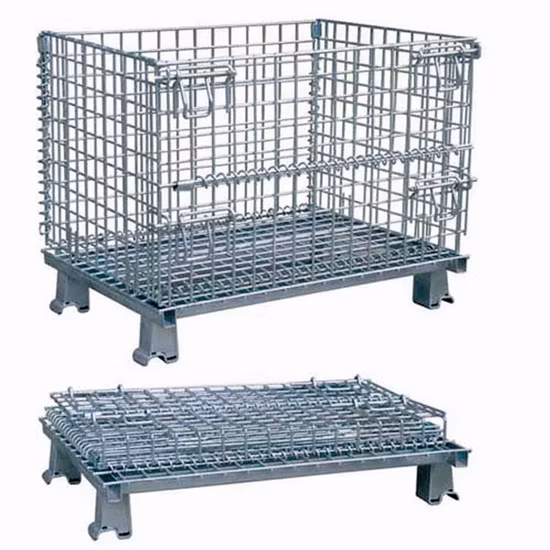

Wire container is also called as wire cage or wire basket, which is durable and stronger, at the same time, it is easyto folding down and stacking high.Because wire container has special strong feet and heavy-duty understructure whichhelp to stake 4 high when loaded heavy weight. Good visibility and same loading space by using wire container makethe warehouse management unitized and standard. When unused, the wire container can be folded down to save space.It is easy for forklift accesses from four side. Options accessories include dividers, shelves, card holders, name plates,casters, locking security lid, fork pockets ,bar runners for storage on rack beams.

Same design, different sizes
Same design, different sizes
Model No.	Outer Dimension	Inner Dimension	Loading Capacity	Net Weight	Gate Style
Model No.	Outer Dimension	Inner Dimension	Loading Capacity	Net Weight	Gate Style
	LxWxH(mm)	LxWxH(mm)	Kg	Kg
YFZ-J1	851X512X526	772X467X400	500	24	full drop gate
YFZ-K1	831X505X538	748X470X400	500	27	full drop gate
YFZ-J3	831X514X538	759X471X400	800	29	full drop gate
YFZ-L1	1030X814X838	947X775X698	1000	44	1/2 drop gate
YFZ-W1	1030X814X838	947X775X698	1500	50	1/2 drop gate
YFZ-L2	1230X1014X889	1148X965X750	1000	58	1/2 drop gate
YFZ-W2	1230X1014X889	1148X969X748	2000	70	1/2 drop gate
YFZ-C1	1230X1014X1040	1140X950X900	1000	64	1/2 drop gate
Material	Mild steel Q235
Application area	Warehouse, logistic, recycling industry
Finish	Zinc/hot DIP galvanized/powder coating
Remark	Costomized or OEM support
Main features	1. Collapsible-save space when not in use, ideal for return journeys2. Standard half-hinged gate access3. Long lasting, economical alternative to disposable packing4. Open wire mesh design allows for full visibility for inventory checks, Ventilation and cleaness.

Stackable Pallet Cage Foldable Wire Cage Steel Pallet Container Wire Mesh Pallet Cage for Warehouse

FeaturesI. Sliding locking handles hold drop side securely.2. The "U" formed base channels welded by welding robots, ensuring welding quality and strong capacity.3. Spiral hinge wire improves side panel steady and collapsible, foldable flat to save space.4. Double welded wire construction to reinforce side panel for stack safety.5. Arched steel legs design increase strength and aid stack high and steady. 6. "U" formed construction is welded underneath the side panel to avoid sliding.7. Fasteners are used to joint side panels together, ensuring durability.8. "U" formed loops work with handles to fix up the side panel and drop gates.9. Holes punched on the U formed base channels for fixing the casters.10. Steel name plate.

Stackable Pallet Cage Foldable Wire Cage Steel Pallet Container Wire Mesh Pallet Cage for Warehouse

Dalian Eastfound Material Handling Products locates in Dalian, China, is a manufacturer integrating R&D,production and sales of logistics and storage facilities and equipments.
Our products include: wire deckings, punched decks,wire containers, IBC containers, roll containers, stacking racks,etc. These products are used in supermarkets, agriculture, fisheries, food and beverage industry, auto parts and otherindustries of logistics packaging, transportation and warehousing. Our products mainly exported to North America,Europe, Japan, Australia, the Middle East and other countries.
Packing: Plastic banding+Stretch film wrapped, easy loading and unloading with standard forklift truck or as customer'srequirement.
Q: Are you trading company or manufacturer ?
A: We are manufacturer. Our factory is located in Dalian. You are warmly welcome to visit whenever you are available
Q: How long is your delivery time?
A: Generally it is about 14 days if the goods are in stock, or it is 15-21 days if no stock. It is according to the quantity
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight
Q: What is your terms of payment ?
A: 30% T/T in advance, balance can be made after shipment
Q: How could I install the wire racks or container ?
A: We provide install instruction for every type of products, and we have complete after-sales service system to solve allyour problems
Q: Could you design&produce according to customers' request?
A: Sure, we have very rich experience in customizing production.We have an excellent design team to offer you professionalOEM design service.
